Air Handlers

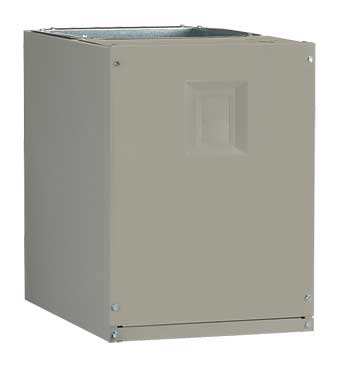

The air handler is the indoor component of a heat pump system. It includes the fan and the heating/cooling coil. The air handler is designed for a particular refrigerant, so it must be matched with the heat pump or air conditioner.

We offer many air handlers with variable and multi-speed features that can provide enhanced indoor comfort by slowly ramping up to your thermostat setting rather than simply turning on at full speed. This alleviates the "cold air blow" often associated with single speed air handlers, and dramatically reduces system noise.

Air Handler Product Offering

B6VMAI

iQ Drive B6VMAI Variable-speed Air Handler

View Brochure
Model Family: B6VMAI
Refrigerant Type: R-410A
Blower Motor: Variable-speed
Factory Warranty Parts: When installed with a matched outdoor unit, this product offers a 12-year parts warranty.
Manufacturer's Stated Benefits:
  • With a Maytag® iQ Drive air handling system, you'll get an iQ Drive controller for complete control over your indoor environ
  • This air handler features Anteater® technology for increased resistance against the top cause of coil leaks - formicary corr
  • Variable-speed operation makes premium home comfort levels achievable.
  • Incredibly Quiet: In order to keep noise levels down, this unit has quiet and smooth blower on/off cycles.
  • The galvanized steel shell includes a 1.5 mil thick, corrosion-resistant, polyester-urethane finish.
  • The cabinet of this unit includes 1" thick insulation with an R-value of 4.2.
B6VMAX

13-16 SEER Air Handler

View Brochure
Model Family: B6VMAX
Refrigerant Type: R-410A
Blower Motor: Variable-Speed
Factory Warranty Parts: When installed with a matched outdoor unit, this product offers a 12-year parts warranty.
Manufacturer's Stated Benefits:
  • The Maytag B6VMAX air handler features Anteater technology for increased resistance to formicary corrosion, the top cause of coi
  • Quiet Performance: Extra quiet and smooth blower on and off cycles.
  • Features a galvanized steel jacket coated in a polyester-urethane finish that resists corrosion.
  • 1 inch insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications.
B6BMMX

Single Stage Air Handler

View Brochure
Model Family: B6BMMX
Refrigerant Type: R-410A
Blower Motor: Single Stage
Factory Warranty Parts: When installed with a matched outdoor unit, this product offers a 10-year parts warranty.
Manufacturer's Stated Benefits:
  • Micro-Channel coils beef up this air handler's resistance to formicary corrosion - the leading cause of HVAC coil leaks.
  • The polyester-urethane finish that coats the galvanized steel cabinet of this unit helps it resist corrosion.
  • The cabinet of this air handler is completely insulated to help prevent unwanted noise and cabinet sweating.

RHMV

High Efficiency Modulating with CFM Motor

View Brochure
Model Family: RHMV
Refrigerant Type: R-410A
Blower Motor: CFM variable speed motor
Factory Warranty Parts: 10 Year Parts Warranty
Manufacturer's Stated Benefits:
  • The RHMV is EcoNet Enabled: This allows the RHMV to directly communicate with the EcoNet Smart Home System.
  • The RHMV features an Electronic Expansion Valve (EEV)
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Enhanced airflow up to .7
  • Suitable for application in mobile homes.
RH2T

Standard Efficiency - X-13 Motor

View Brochure
Model Family: RH2T
Refrigerant Type: R-410A
Blower Motor: Single-stage
Factory Warranty Parts: Conditional Parts Warranty - 10 Years (Registration Required)
Manufacturer's Stated Benefits:
  • Efficiencies up to 15 SEER
  • All aluminum indoor coil
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Enhanced airflow up to .7" external static pressure.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
RH2V

High Efficiency - Up to 16 SEER ECM Motor

View Brochure
Model Family: RH2V
Refrigerant Type: R-410A
Blower Motor: Two stage compressor
Factory Warranty Parts: Conditional Parts Warranty - 10 Years (Registration Required)
Manufacturer's Stated Benefits:
  • Includes an energy efficient ECM® Motor, which in most applications, enhances the SEER rating of the outdoor unit.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Nominal airflow up to 1.0" external static pressure.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort.
  • Dip switch settings for selectable, customized cooling airflow over a wide variety of applications.
  • On-demand dehumidification terminal that adjusts airflow to help control humidity for unsurpassed comfort in cooling mode.
  • External filter required.
  • Evaporator coil is constructed of aluminum fins bonded to internally grooved aluminum tubing.
